Puffer Serie B5

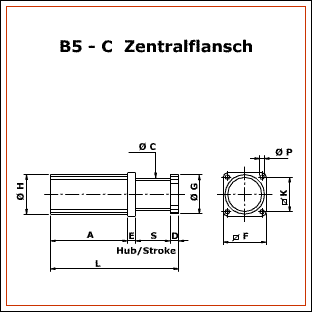

| Type | W * Kapazität kJ +/- 10% |
S Hub mm |

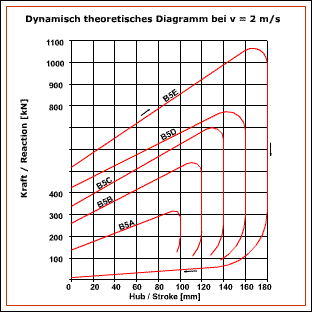

Fdyn * Endkraft kN +/- 10% |
Gewicht kg |
Abmessungen [ mm ] | |||||||||
| A | C | D | E | F | G | H | K | L | P | |||||
| B5A-C | 25 | 100 | 325 | 22 | 275 | 91 | 20 | 20 | 135 | 115 | 116 | 105 | 415 | 14 |
| B5B-C | 50 | 120 | 540 | 38 | 325 | 115 | 30 | 25 | 155 | 138 | 142 | 125 | 500 | 15 |
| B5C-C | 75 | 140 | 700 | 45 | 315 | 133 | 35 | 30 | 175 | 158 | 160 | 140 | 520 | 18 |
| B5D-E | 100 | 160 | 750 | 73 | 350 | 153 | 40 | 35 | 215 | 185 | 180 | 170 | 585 | 22 |
| B5E-C | 150 | 180 | 1100 | 118 | 405 | 182 | 45 | 40 | 250 | 220 | 215 | 195 | 670 | 26 |
| * Werte für W und Fdyn bei v = 2 m/s | ||||||||||||||

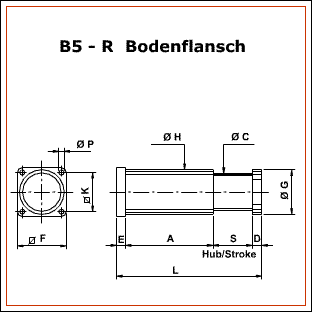

| Type | W * Kapazität kJ +/- 10% |
S Hub mm |
Fdyn * Endkraft kN +/- 10% |
Gewicht kg |
Abmessungen [ mm ] | |||||||||
| A | C | D | E | F | G | H | K | L | P | |||||
| B5A-R | 25 | 100 | 325 | 22 | 275 | 91 | 20 | 20 | 135 | 115 | 116 | 105 | 415 | 14 |
| B5B-R | 50 | 120 | 540 | 38 | 325 | 115 | 30 | 25 | 155 | 138 | 142 | 125 | 500 | 15 |
| B5C-R | 75 | 140 | 700 | 45 | 315 | 133 | 35 | 30 | 175 | 158 | 160 | 140 | 520 | 18 |
| B5D-R | 100 | 160 | 750 | 73 | 350 | 153 | 40 | 35 | 215 | 185 | 180 | 170 | 585 | 22 |
| B5E-R | 150 | 180 | 1100 | 118 | 405 | 182 | 45 | 40 | 250 | 220 | 215 | 195 | 670 | 26 |
| * Werte für W und Fdyn bei v = 2 m/s | ||||||||||||||
